Boom type
The Multi 2800 can mix 1 ton of urea in 530 gallons of water.

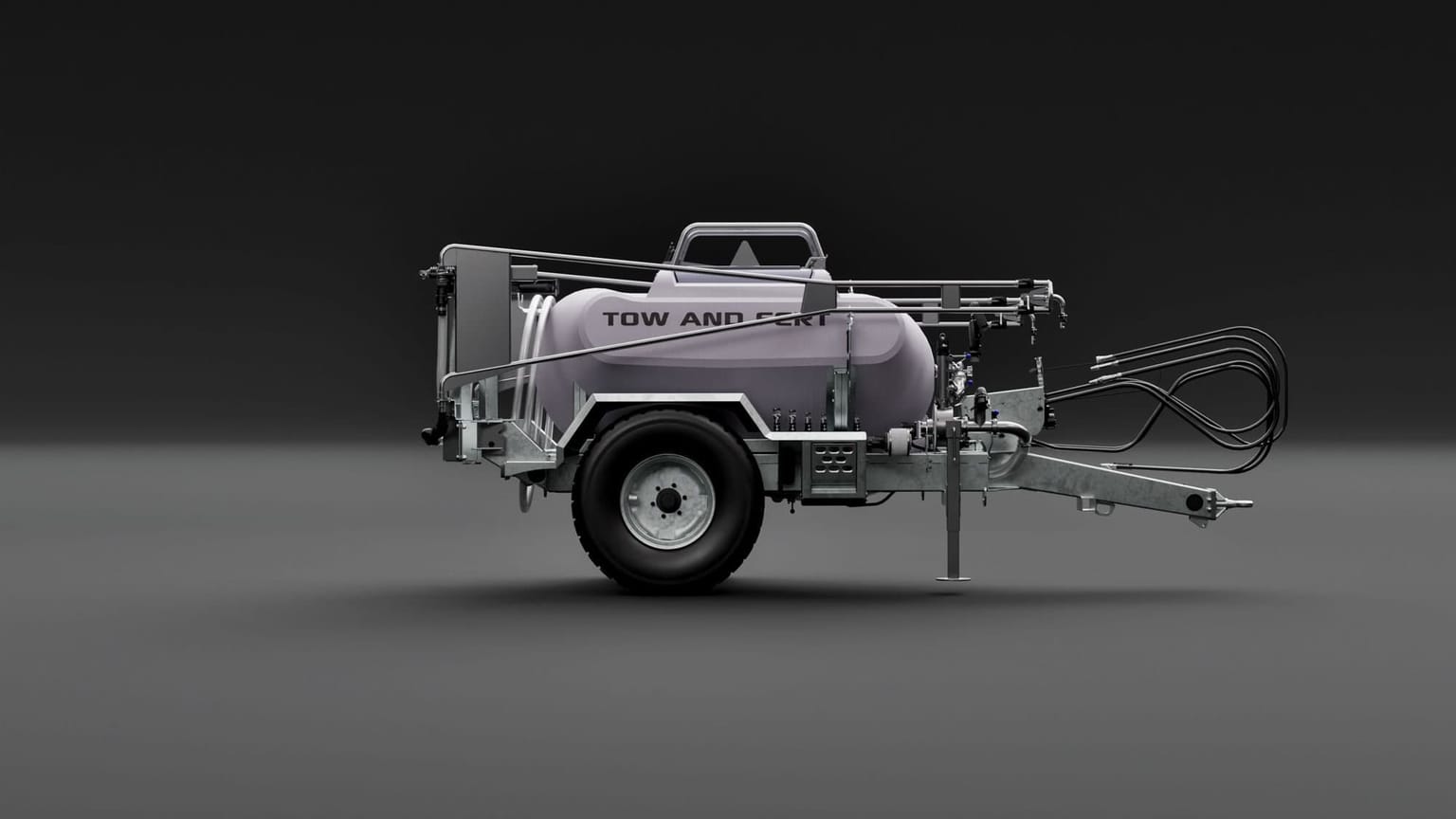

Tow and Fert Multi 2800

The Multi 2800 is designed to be towed by a tractor of a minimum 110hp. The best solution for those rolling and mid sized farms, the Multi 2800 is a versatile machine that will go places others won't. The Multi 2800 can mix 1 ton of urea in 530 gallons of water but if you are not a urea user, then the Multi 2800 is a perfect mid sized machine for all other products including fish hydrolysate, biological stimulants and seeds. It uses the PTO at 540rpm for mixing and agitation and hydraulics to run the specifically designed 3" trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 3 tons of fine particle fertilizer directly into the water without any pre-mixing or messy work. Combined with the optional crane, you can load 3 tons of fertilizer product into the Tow and Fert in just 15 minutes. With up to a 72 foot spread, the Multi 2800 can cover 2.5 acres in just 3 minutes at 7.5 mph. With a capacity of up to 50 acres per load, this Tow and Fert makes light work of a large job.

Tow and Fert Multi 2800

Tank size

740 gal

Spray width

72 ft

Area per load

49 acres

Application rate

45 – 446 litres/hectare lb / acre

Attachment style

Trailed

Attachment vehicle

110hp tractor or greater

Gallery

Switch above to view Pasture setup.

Boom type

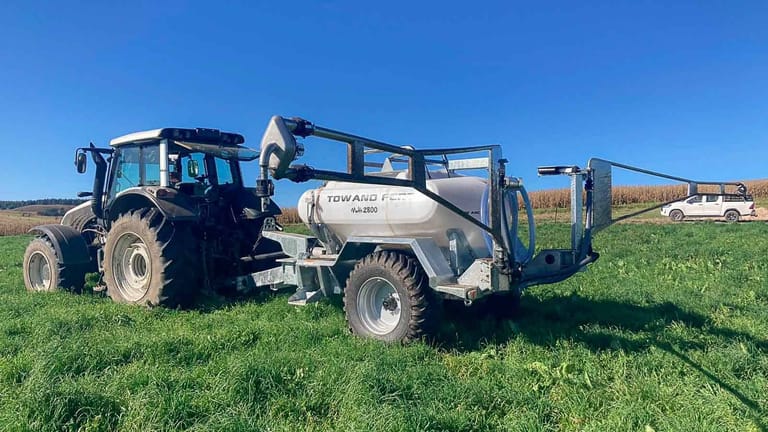

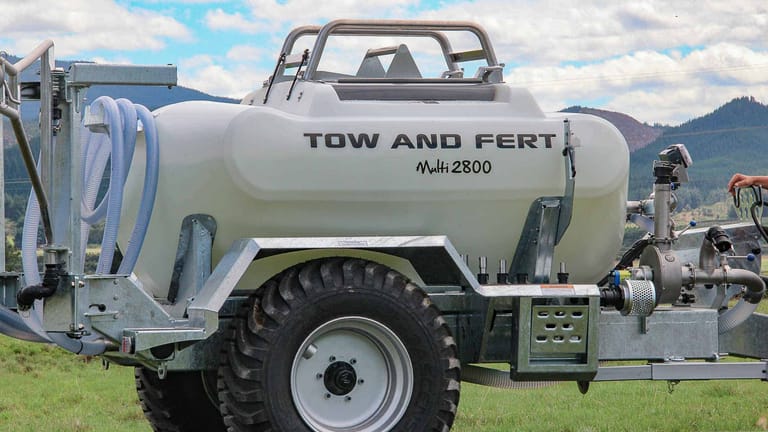

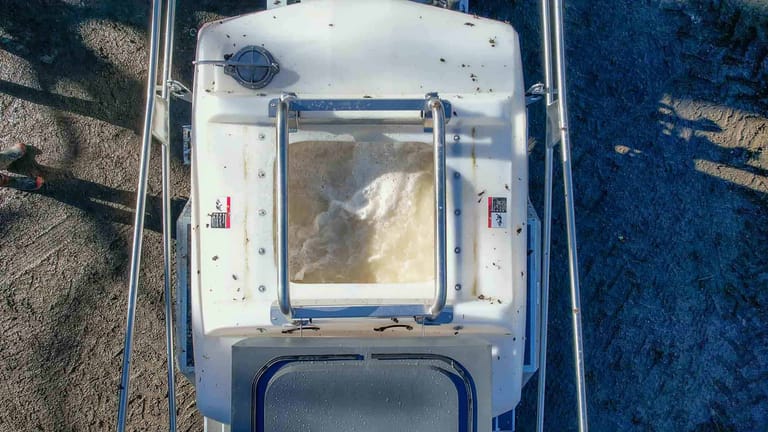

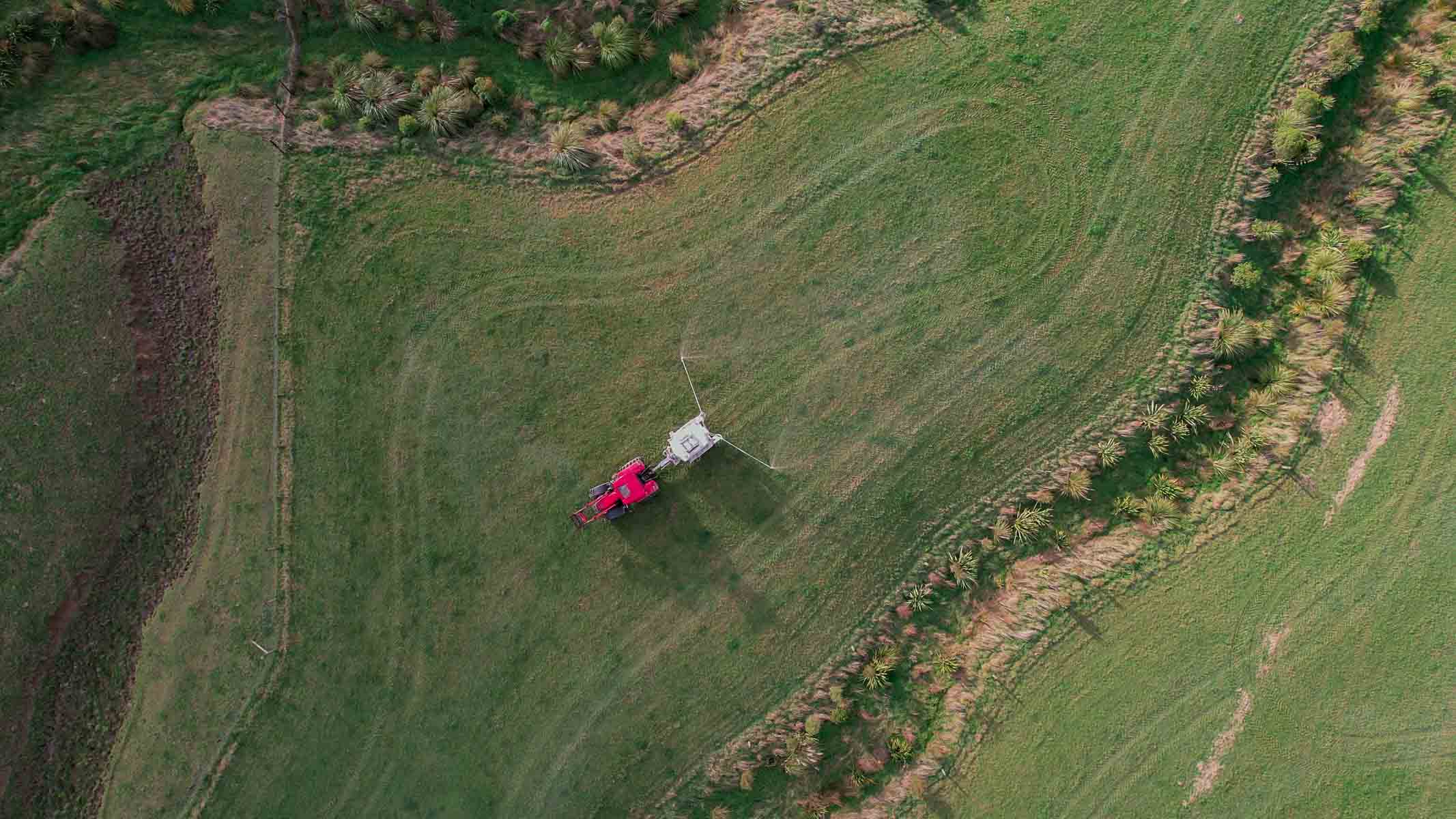

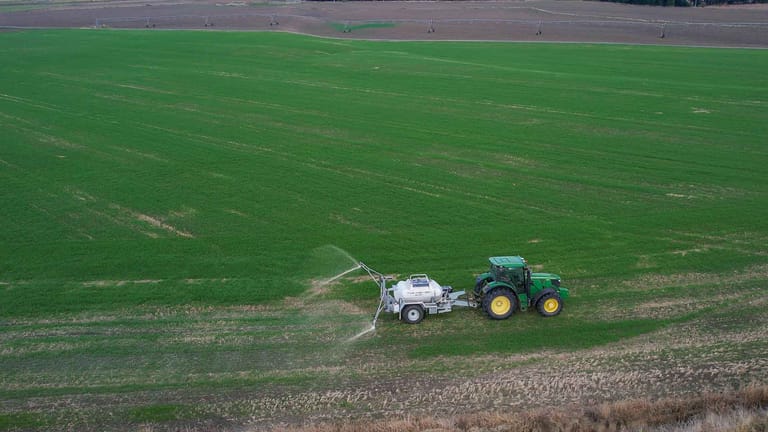

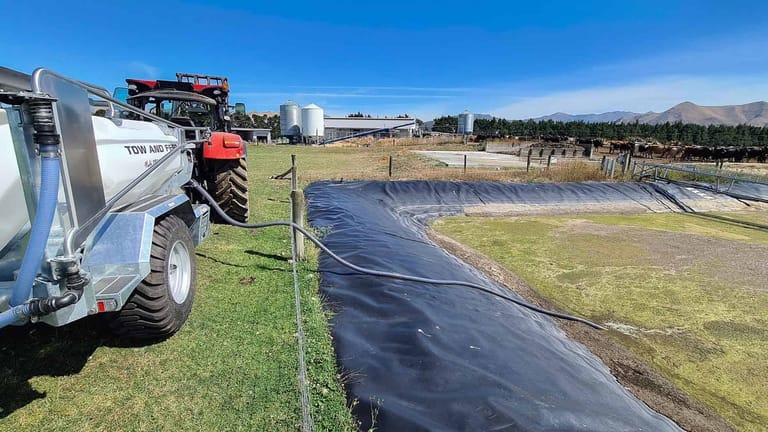

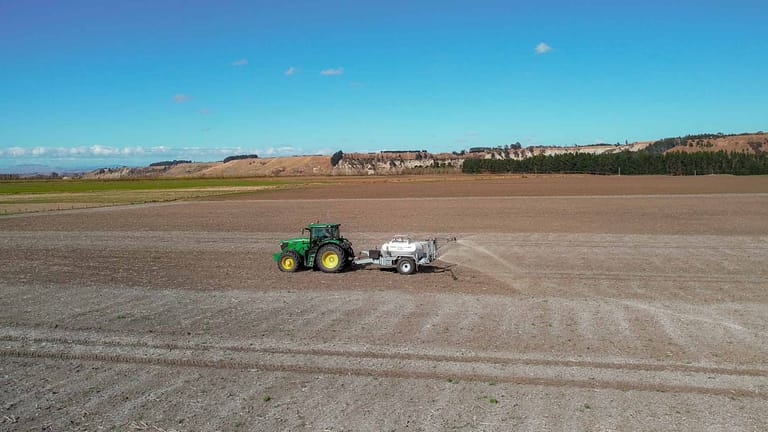

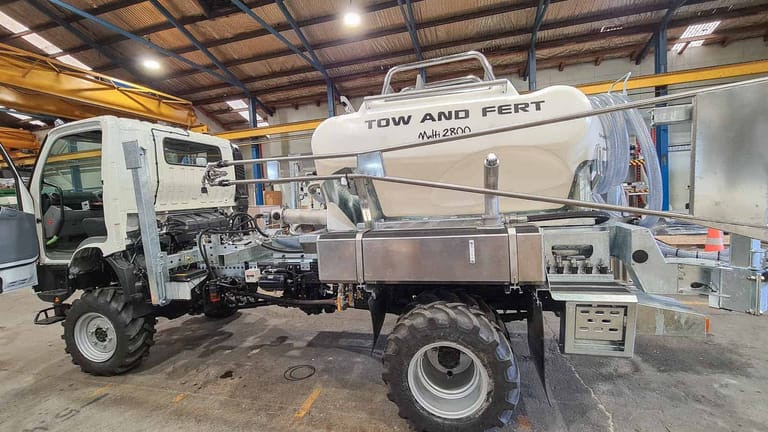

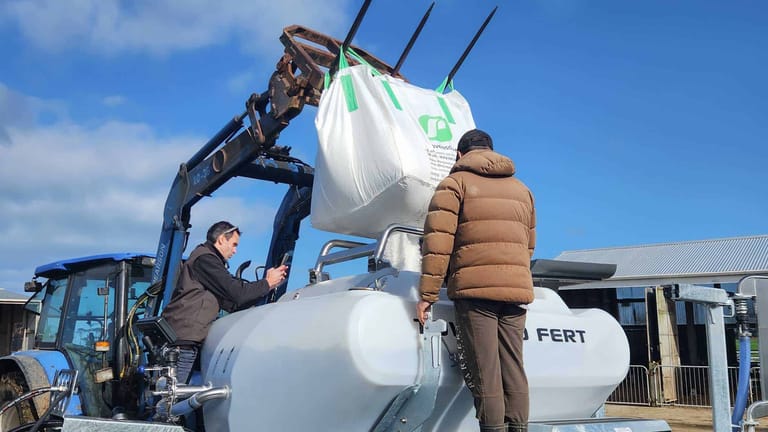

A black tractor with a Tow and Fert Multi 2800 sprayer attached, positioned in a lush green field.A green tractor towing a Tow and Fert Multi 2800 sprayer across a dry, open field under a blue sky.Tow and Fert Multi 2800 connected to a red tractor, drawing water from a lined farm pond through a suction hose.Close-up side view of a Tow and Fert Multi 2800 sprayer, showing its white tank, branding and large wheel.Aerial view of a red tractor towing a Tow and Fert Multi 2800 sprayer along a steep grassy hillside.Two operators loading granular fertiliser into a Tow and Fert Multi 2800 from a bulk bag lifted by a tractor-mounted front-end loader.Top-down view of the Tow and Fert Multi 2800 sprayer, showing liquid swirling inside the tank through the fertiliser filling opening.A green tractor towing a Tow and Fert Multi 2800 sprayer across a green pasture, applying liquid fertiliser through a spray boom.Tow and Fert Multi 2800 truck-mounted unit inside a workshop.
Specifications

Tank size

740 gal

Spray width

72 ft

Area per load

49 acres

Application rate

45 – 446 litres/hectare lb / acre

Attachment style

Trailed

Attachment vehicle

110hp tractor or greater

Agitation powered by

PTO @ 540 RPM or Hydraulic Motor – 55 litres/min

Pump model

Metalform Stainless 3” Centrifugal Trash Pump

Pump performance

317 gal/min at 0 ft lift. Max lift = 13 ft

Pump powered by

Hydraulic Motor – 8.7 gal/min

Dry weight

4,630 lb

Full weight

up to 14,330 lb (depending on mix SG)

Size

16 ft 1 in (L) x 7 ft 7 in (W) x 8 ft 2 in (H)

Optional extras

PTO or Hydraulic Agitation

In-cab Rate Assist

Crane Kit

Section Control

Hort/Tree Crop Kit

Tow Hitch

Truck Mount

Stationary Mixing Station

Compost Basket

Description

Not too big, not too small.

The Multi 2800 is designed to be towed by a tractor of a minimum 110hp. The best solution for those rolling and mid sized farms, the Multi 2800 is a versatile machine that will go places others won’t.

The Multi 2800 can mix 1 ton of urea in 530 gallons of water. If you are not a urea user, then the Multi 2800 is a perfect mid sized machine for all other products including fish hydrolysate, biological stimulants and seeds.

It uses the PTO at 540rpm for mixing and agitation and hydraulics to run the specifically designed 3″ trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 3 tons of fine particle fertilizer directly into the water without any pre-mixing or messy work. Combined with the optional crane, you can load 3 tons of fertilizer product into the Tow and Fert in just 15 minutes.

With up to a 72 foot spread, the Multi 2800 can cover 2.5 acres in just 3 minutes at 7.5 mph. With a capacity of up to 50 acres per load, this Tow and Fert makes light work of a large job.

BUILT TO OUTPERFORM

The most capable suspension sprayer, feature by feature

We built the Tow and Fert to do what others can't. Line them up against it and the gap speaks for itself.

FeatureTow and FertOther Sprayers
Even spread, under 15% COVEven application you can measure, test it on your own farmYesPartial
Dissolves 1 part urea to 2 parts water, fastHigh-concentration mixes without clogging or long load timesYesNo
Suspends 2 parts lime flour to 1 part waterKeeps heavy fine particles in suspension, evenly, all the way to the nozzlesYesNo
Boom recirculation on every nozzlePatented system, works even on single-nozzle machines - no blockingYesNo
Purpose-built Metalform 3 inch stainless pumpEngineered in-house after off-the-shelf pumps couldn't take the punishmentYesNo
Runs at 22psi to protect biologicalsLow pressure keeps microbes and living inputs alive through applicationYesNo
Onboard weigh scalesKnow exactly what's in the tank, load accurately every timeYesPartial
Companion Mix appMix rates, nozzle selection and ground speed worked out for youYesNo
2,500+ strong farmer communityReal users sharing results, trials and advice, not just customersYesNo
Commercial-grade build, Over-engineered to outlastCommercial construction that keeps performing, day in day outYesNo
Travelling service & support - globallyOn-farm support and servicing, not a phone queueYesPartial
Pioneered and built in New ZealandDesigned and manufactured in Dannevirke, over 15 years in the paddockYesPartial

Handover Video

Handover Video: The Multi 2800 & Multi 4000

This video will give you an overview of how the Tow and Fert Multi 2800 and Multi 4000 operates.
